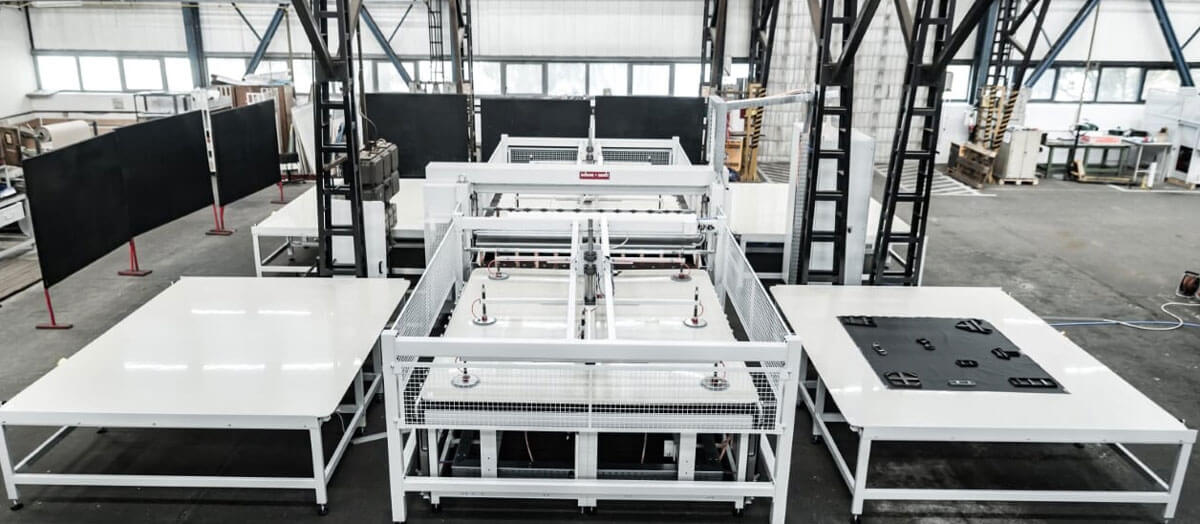

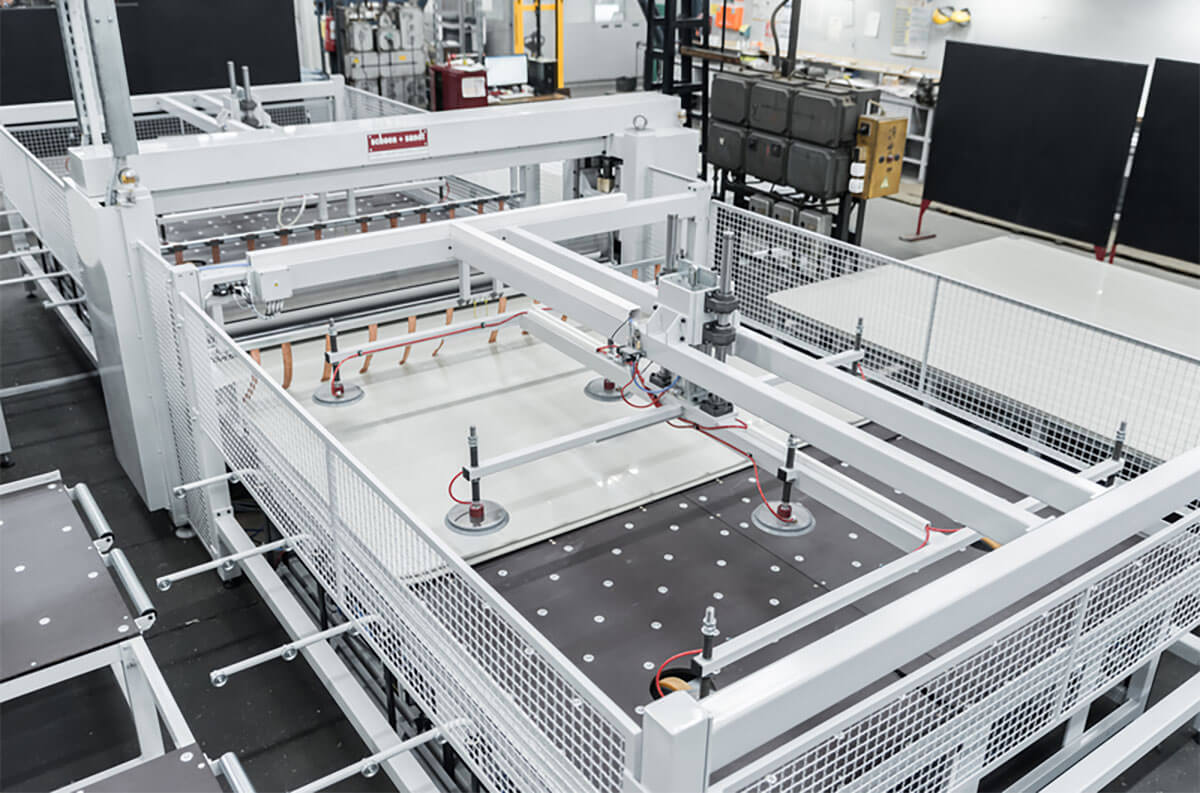

Die Cutting Leather Hide Roller Press – High Volume & Heavy Duty – schoen+sandt

Posted on: January 25, 2022

Roller Press Die Cutting Half & Full Leather Hides and Multi Layers of Fabric

Capable of Die Cutting 6 Leather Hides Per Hour / Per Cutting Table

Features

  • Separately synchronized drives for steel rollers – no mechanical wear parts
  • Soft drive start and stop by frequency controlled drives for less abrasion of control elements
  • Different heights of cutting dies possible for each preparation table by height adjustment via servo drive – by using multiturn-encoder the reference point drive is not necessary
  • Automatic monitoring of sandwich height by photo sensors
  • Siemens S7 PLC with touch panel and clear text error indication
  • Control cabinet is equipped with plugable elements, this ensures quick assembly and disassembly
  • Considerable adjustment and diagnostic possibilities by using MultiPanel MP 277

Specifications

EuropeanUSA
Steel Roller Width1400 mm
1600 mm
55 inches
102 inches
Steel Roller Diameter400 mm15.7 inches
Gap Between Rollers20-150 mm0.79-5.9 inches
Working Height800 mm31.5 inches
